Melco Amaya XTS Refurbished 16 Needle Commercial Machine

$9,887.50 USD


Machine is Packaged with
Power Cord
8 Hoops ( new ) 2 of each 12,15,18 CM & 30 x 36CM
1 Cap Driver & 2 Cap Frames
1 Cap Guage
Tool Kit
Ethernet Cross over Cable
Design Shop Lettering , Editing & Digitizing with Vector graphics option V10
OS Flex Plus V11

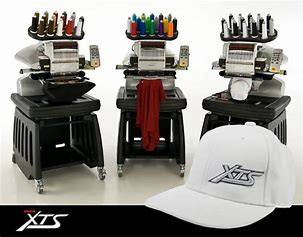

Investing in professional embroidery equipment is the most important decision you will make for your business. For over 35 years Melco has helped clients achieve their embroidery production goals by creating solutions they demand. Based on those demands, the AMAYA XTS represents the latest in embroidery technology, delivering the highest quality stitching, ease of use, industrial durability and the ability to stitch on the widest variety of products in the industry. The design is pure elegance, the performance is raw power and the result is pure profit. The All New AMAYA XTS Feature Set Includes: New for XTS • The Second Generation XT is built on the solid XT platform, with a new metallic silver look that blurs the line between science and art. New for XTS• Thread trimmer has a whole new cutting action for clean, reliable cuts, slicing through thick burmilana and metallic thread! New for XTS• The new wide angle cap frame for XTS provides the largest cap sewing field in the industry, is easy to use and extremely stable. This helps provide quick training and better design registration at top speed. The new design requires little or no backing and stitch quality is amazing. New for XTS • Built in lettering and editing capability through new AMAYA OS. Exclusive Feature• AMAYA OS now has Real Hoop Limit Detection, a huge technological advancement saving you time and money!

16 Colors with Backup System With the industry’s first Color Backup System, users can program groups of needles together. In the event of a thread break, the AMAYA XTS will automatically switch to the back up needle and continue to stitch. The Color Backup System can easily be configured for both multi-and single-head production.
Acti-Feed™ Tensioning With speeds up to 1500 spm the exclusive Acti-Feed™ system feeds the thread smoothly and automatically adjusts thread tensions so you don’t have to. This system ensures that you will get the same perfect quality on every sew–out.
Ultra Precise Laser Registration AMAYA XTS features a laser eye for tracing and positioning. Never have misaligned embroidery again! It makes the design setup fast and easy, and assures accurate placement throughout the sewing process. The laser eye is activated automatically during operations like manual jog and tracing, or the operator can manually activate the eye with the press of a button on the fast key pad.
Height Adjustable Presser Foot The patented height adjustable presser foot makes it easy to adjust to different fabrics. You can manually lower the dead point of the presser foot in the range of 0.5mm to 3.5mm above the needle plate, without tools.
High Speed Pantograph (1500 spm) All of the structural and moving parts are located above the garment, virtually eliminating the possibility of the material getting caught by the pantograph. The optimized x/y-beam with carriage means precise positioning when embroidering at high speeds.
The Industry’s Smallest Cylindrical Lower Arm and UltraReliable High Performance Trimmer AMAYA XTS features the smallest cylindrical lower arm in the industry–providing the largest cap stitch field available. The all new high performance trimmer slices effortlessly through metallic and thick burmilana thread.

Reliable and Convenient Melco leads the way with innovative operating system software that offers total flexibility and convenience. AMAYA OS is filled with new features making the operation of your machines more productive than ever. AMAYA OS is available in multiple productivity levels to fit your business needs.
Flexible AMAYA OS is reliable software. With the exclusive Flexfeature, AMAYA XTS heads can be operated in synchronous mode (all heads start and stop in unison) or in asynchronous mode (each head operates independently). The asynchronous mode allows other machines in a multi-head configuration to continue operating when one head stops for an event, such as a bobbin change or thread break.
AMAYA OS Fits Your Business Whether you have a large industrial operation or a retail embroidery shop, AMAYA XTS and AMAYA OS offer the flexibility, convenience and features to bring your productivity and profitability to the next level.
You Choose the OS That Best Fits Your Business Needs AMAYA OS SE For Single Machine Operation AMAYA OS SE (Single Edition) comes bundled with AMAYA XTS single-head machines, and is designed for embroiderers who want to run one AMAYA XTS machine. If more AMAYA heads are added at a later date, you can easily upgrade.
AMAYA OS Flex Plus For Multiple Machines in Multiple Groups Use AMAYA OS Flex Plus if you own multiple AMAYA XTS machines and need maximum embroidery operation flexibility. AMAYA OS Flex Plus software lets you run up to 30 machines in different groups. With AMAYA OS Flex Plus, you can group and regroup your machines in any combination and sew different designs on each group. For example, set up a four-head group, a six-head group and a two-head group all from the AMAYA OS Flex Plus software. It’s total flexibility!
